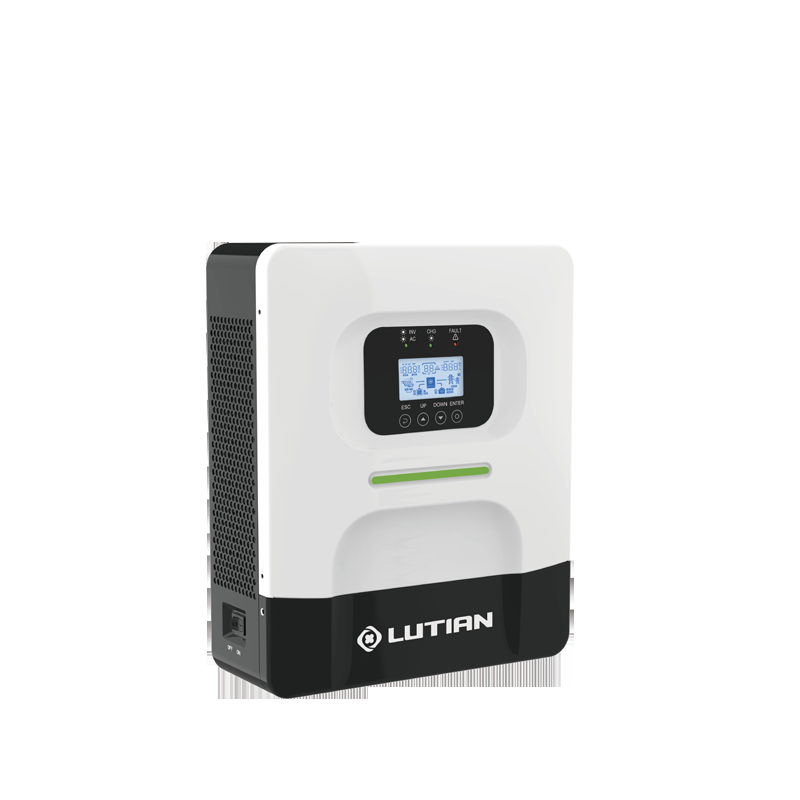

WF3000-C

In the modern world, energy is opportunity. At Lutian, we don't just store power; we architect its availability. Our advanced energy storage systems (ESS) are engineered to capture, conserve, and distribute electricity with surgical precision and uncompromising safety.

Utilizing cutting-edge Lithium-Iron-Phosphate (LFP) chemistry and intelligent Battery Management Systems (BMS), our solutions deliver exceptional cycle life and round-trip efficiency. Whether balancing grid loads, enabling behind-the-meter savings, or providing backup security, we ensure your energy is always ready.

Intelligent storage. Instant response. Infinite possibilities.


Parameter
WF3000-C
Rated output power 3000W/3600VA
Rated output current 15.6A
Rated output voltage 220,230,240Vac
Frequency 50/60Hz
Surge power 6000VA 5s
THDv(@ linear load) <3%
Switching time 10ms typical (For UPS) 20m typical (For Home Appliances)
Max. input power 4600W
Max. input current 20A
Rated grid voltage 220,230,240Vac
Rated grid frequency 50/60Hz
Acceptable range 170-280Vac(For UPS); 90-280Vac(For Home Appliances)
Recommended max. PV input power 4500W
Max. input voltage(Voc) 500Vdc
MPPT operating voltage range 70V-425V
Number of MPPT 1
Max. input current per MPPT 18A
Max. short-circuit current per MPPT 20A
Battery type LiFePO4/Lead-acid
Battery voltage range 20~30Vdc
Rated battery voltage 24Vdc
Max. charge/discharge current 125A/135A
BMS communication mode CAN
