LS series

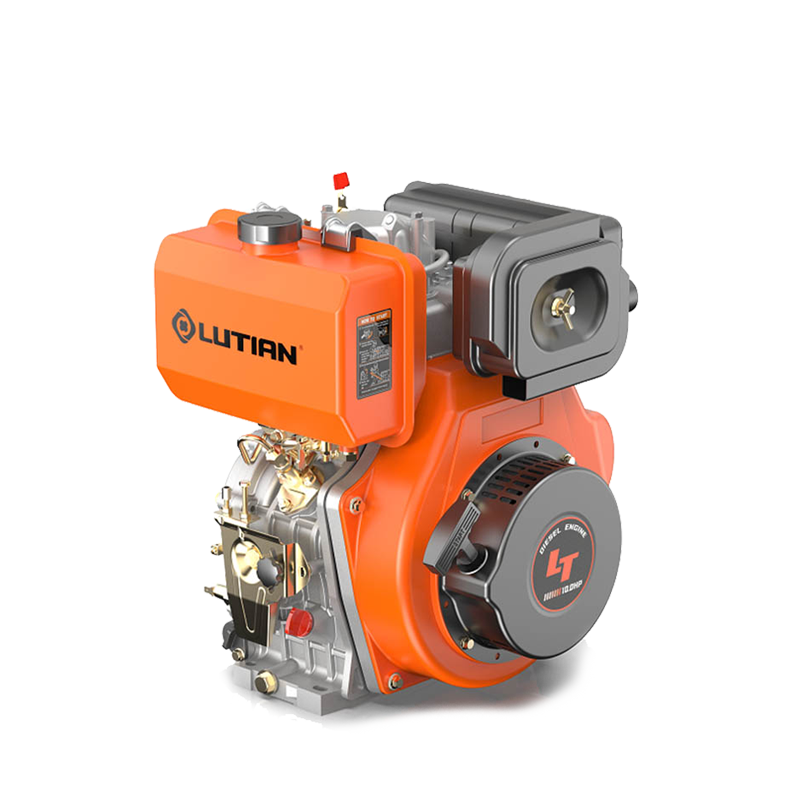

LTD173F
LUTIAN diesel engines are engineered for heavy-duty, industrial performance with exceptional fuel efficiency.
Proprietary digital alternators and robust diesel systems deliver quiet, consistent, and reliable power for machinery and generators.
Durable frames and air-cooled designs enable continuous operation under high loads.
CE and SGS certified for global market compliance.
Your Power Solution Starts Here.
Parameter
LTD173F
| Type | Single-cylinder ;4-stroke Air-cooled diesel engine |
| Combustion Stystem | Direct injection |
| Bore x stroke | 73x59mm |
| Displacement | 247cc |
| Engine Speed | 3000 | 3600rpm |
| Maximum Output | 5.0 | 5.5HP |
| Continuous Output | 4.3 | 4.8HP |
| Power Take Off | Crankshaft or camshaft(camshaft PTO rpm is 1/2) |
| Starting System | Recoil or electric (optional) |
| Fuel Tank Capacity | 2.5L |
| Lube Oil Capacity | 0.75L |
| Fuel Type | 0#,-10#,-20# |
| Lube Oil Type | CD Grade or SAE 10W-30,SAE15W-40 |
| Dimensions(LxWxH) | 420*360*440mm |
| Net Weight (recoil) | 25kg |
| Net weight (electric) | 30kg |
| Load Qty.40'HC/40'GP/20'GP | 890/890/430 |
