LS series

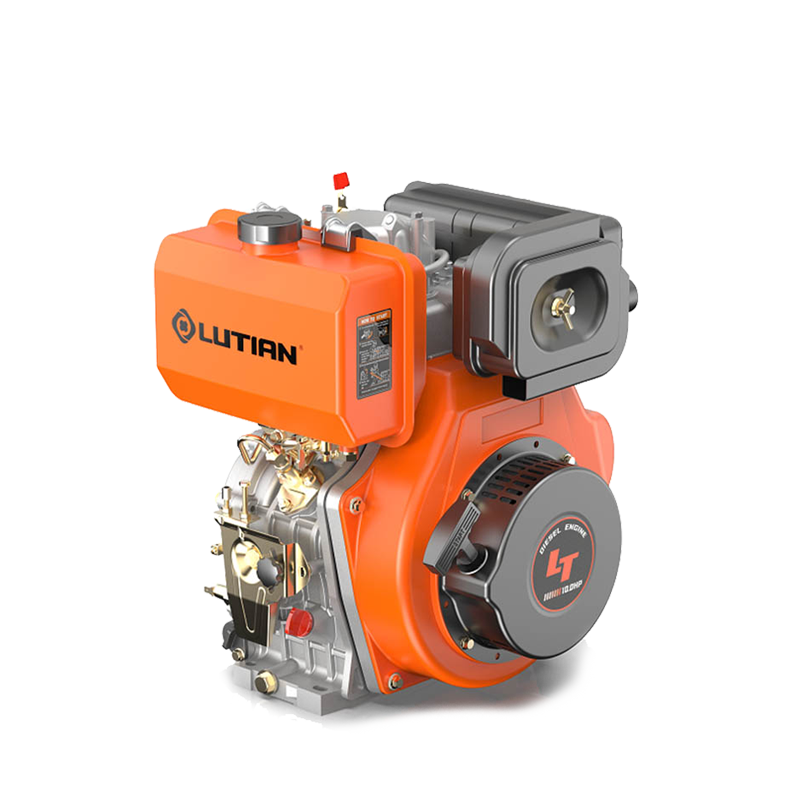

LTD178F
LUTIAN diesel engines are engineered for heavy-duty, industrial performance with exceptional fuel efficiency.
Proprietary digital alternators and robust diesel systems deliver quiet, consistent, and reliable power for machinery and generators.
Durable frames and air-cooled designs enable continuous operation under high loads.
CE and SGS certified for global market compliance.
Your Power Solution Starts Here.
Parameter
LTD178F
| Type | Single-cylinder ;4-stroke Air-cooled diesel engine |
| Combustion Stystem | Direct injection |
| Bore x stroke | 78x62mm |
| Displacement | 296cc |
| Engine Speed | 3000 | 3600rpm |
| Maximum Output | 5.7 | 7.0 HP |
| Continuous Output | 5.2 | 6.0 HP |
| Power Take Off | Crankshaft or camshaft(camshaft PTO rpm is 1/2) |
| Starting System | Recoil or electric (optional) |
| Fuel Tank Capacity | 3.5L |
| Lube Oil Capacity | 1.1L |
| Fuel Type | 0#,-10#,-20# |
| Lube Oil Type | CD Grade or SAE 10W-30,SAE15W-40 |
| Dimensions(LxWxH) | 460*440*510mm |
| Net Weight (recoil) | 33kg |
| Net weight (electric) | 38kg |
| Load Qty.40'HC/40'GP/20'GP | 645/512/256 |
